AN-LPD-703GHP

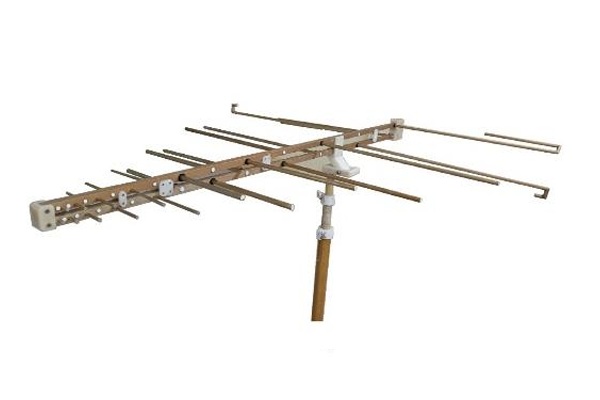

The ANB-LPD-703GHP is a log periodic dipole array antenna, specially designed for EMC/EMI compliance testing in accordance with ANSI/CISPR/SAE ARP test standards. The ruggedized aluminium construction of the antenna allows it to be used in both indoor and outdoor laboratory environments. Each individual antenna is precision manufactured, tested and calibrated before delivery. The antenna is capable of handling power levels up to 1000W for immunity tests. The antenna can be used for Radiated Immunity and other electro-magnetic (EM) field measurement applications.
Features
1. Log-Periodic Antenna for Tx / Rx Application2. Frequency Range : 70 – 3000 MHz
3. VSWR <2.5
4. Gain 4-8 dBi
5. Impedance - 50Ω (Nominal)
6. Precision construction
7. Material - Aluminium
8. Individual calibration as per ANSI 63.5 / SAE ARP 958
| Model | AN-LPD-703GHP |
|---|---|
| Frequency Range | 70 – 3000 MHz |
| VSWR | <2.5 |
| Gain | 4-8 (dBi) |
| Max Power | 1000 watt |
| Polarisation | Linear (V / H) |
| Connector Type | N female |
| Dimensions(WxL)) | 1.9x1.5m(folded elements) 1.9x2.18 (Straight elements) |
| Weight | <3.5 Kg |
| Environmental | -30°C to +52°C (In use) -40°C to +70°C (storage) |
| Mounting | 1/4X20 threads, Female |
| Applications | Radiated Emissions / Immunity and EM field monitoring |
