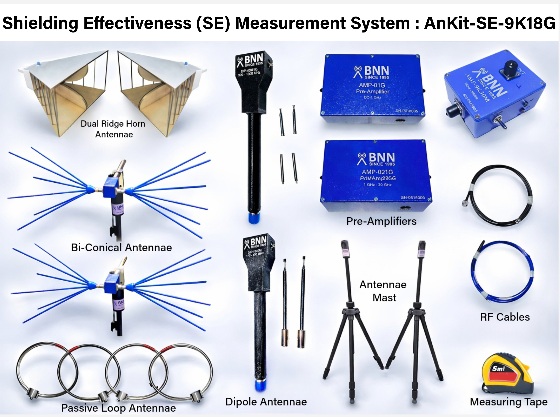

The AnKit-SE-9K18G is a comprehensive kit consisting of components used for SE measurements, emissions or other general purpose field measurements in the (9 kHz– 18 GHz) band. The kit includes parts covering both transmit and receive sides, in a specially designed ruggedized portable case for safety and security of the components during transit.
When used with appropriate Tx/Rx* the kit offers a wide dynamic range:
9 kHz 90 dB
100 kHz 100 dB
1 MHz 110 dB
15 MHz 110 dB
20 MHz – 18 GHz 120 dB
The kit is complete, with masts, adaptors and cables for immediate deployment to start testing SE. The kit has a proven track record with active users testing hundreds of chambers each year using this kit.
