ANMP-10K30M

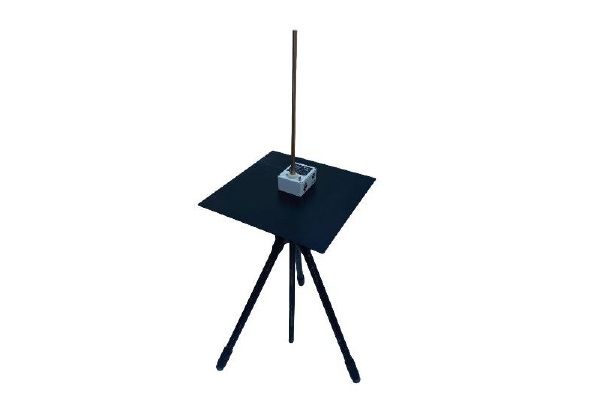

The ANMP-10K30M is an omni-active receive antenna with BNC output connector between 9kHz-30MHz frequency range. The antenna can be used for Mil Std, FCC, CISPR25 measurements in the specified frequency range. The antenna comes with a brass rod, matched pre-amplifier and battery charger. The antenna base has a drilled / tapped hole for mounting on tripods with ¼” x 20 threads. An additional L adaptor permits mounting the loop in horizontal polarization. The antenna has a 18 inch by 18 inch ground plane with fixed rod length of 104mm.
Features
1. Active Monopole Antenna for Emissions and SE Testing2. Frequency Range : 9KHz – 30MHz
3. Rugged construction
4. Calibration as per ANSI 63.5/ IEEE 291
5. Output Connector BNC Type Female
5. Battery Powered High Sensitivity
Specifications
| Model | ANMP-10K30M |
|---|---|
| Frequency Range | 9 KHz – 30 MHz |
| Impedance | 50 Ohms |
| Battery | 9V NiMH 2000mAh |
| Average Battery Life | 6h |
| Termination | BNC-F 50Ω | Active Antenna Factors | 8 ± 4 dB/m |
| Weight | ~5 Kg |
| Dynamic Range | 98dB (1MHz) @1kHz bandwidth |
| Lower Limit of Field Strength Measurement | -1dBuV/m(1MHz) br>@1kHz Bandwidth |
| Upper Limit of Field Strength Measurement | +97dBuV/m(1MHz) @1KHz Bandwidth |
| VSWR | <2 |
| Environmental Operating/Storage |
-20°C to +45°C -40°C to +70°C |
| Mounting | ¼” x 20 threads |
| Applications | Mil Std 461, CISPR 25 |
