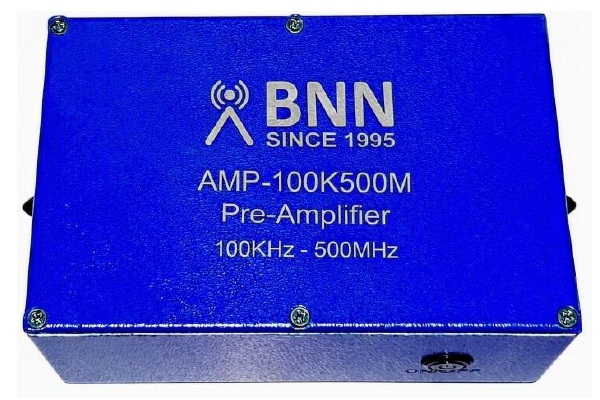

AMP-100K500M
The AMP-100K500M is a low noise, wide-band preamplifier
with a large dynamic range. It has an
excellent performance from 100KHz-500MHz with a
nominal gain of 24dB. The pre-amplifier increases
sensitivity of field strength measurements and is
specifically designed for extremely sensitive
measurements up-to 500 MHz.
The Pre-amplifier has max input power (no
damage) of +5 dBm.
The pre-amplifier finds application in EMC Emission,
Shielding Effectiveness, and Radio Interference
measurements.
Due to the built-in rechargeable battery, operation
without power supply is possible for approx. 5h.
Note: Operating Unit without load is not
recommended.
Features
1. Pre-Amplifier for Shielding effectiveness, EMC /EMI Testing2. Frequency Range: 100KHz-500MHz
3. Noise Figure 2.9 dB
4. Impedance - 50Ω (Nominal)
5. VSWR 1.6 (Max) at input/output ports
6. Connectors SMA
7. Max Input Power +5 dBm
Specifications
| Model | AMP 9K10M |
|---|---|
| Frequency Range | 100KHz-500MHz |
| typical Gain | 24dB |
| Noise Figure | 2.9 dB |
| Impedance | < 50Ω (Nominal) |
| Connector Type | SMA Female |
| Power Supply | Using 230V-50Hz adapter with output 16V, 0.3A DC |
| VSWR | 1.6 (Max) at input/output ports |
| Dimensions | 189x120x83mm |
| Weight | 600g |
| Applications | Radiated Emissions / Shielding Effectiveness |
| Operating temp | -20 to 71 deg |
