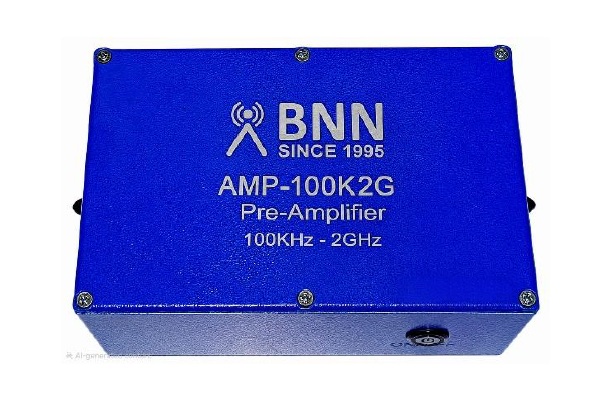

AMP-100K2G
The AMP-100K2G is a low noise, wide-band pre-amplifier with a large dynamic range. It has an excellent performance from 100KHz -2 GHz with a nominal gain of 31dB. The pre-amplifier increases sensitivity of field strength measurements and is specifically designed for extremely sensitive measurements up-to 2 GHz.
The Pre-amplifier has max input power (no damage) of -10 dBm. The max output power is +13 dBm.
The pre-amplifier finds application in EMC Emission, Shielding Effectiveness, and Radio Interference measurements.
Features
1. Pre-Amplifier for Shielding effectiveness, EMC /EMI Testing2. Frequency Range: 100KHz - 2 GHz
3. Noise Figure 2 dB
4. Impedance - 50Ω (Nominal)
5. VSWR 1.6
6. Connectors SMA Female
7. Max Input Power -15 dBm
Specifications
| Model | AMP 9K10M |
|---|---|
| Frequency Range | 100 KHz - 2 GHz |
| Gain | 31 ± 1 dB @ 100KHz-2 GHz |
| Noise Figure | 2.0 dB @ 150KHz |
| Impedance | < 50Ω (Nominal) |
| Connector Type | SMA Female |
| Power Supply | Using 230V-50Hz adapter with output 12V, 0.5A DC |
| VSWR | 1.6 |
| Dimensions | 120 x 95 x 58mm |
| Weight | 600g |
| Max Input Power | -15 dBm |
| Applications | Radiated Emissions / Shielding Effectiveness |
