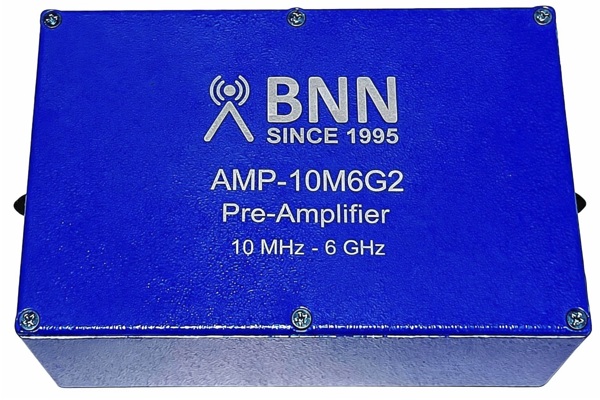

AMP-10M6G2
The AMP-10M6G2 is a low noise, wide-band pre-amplifier with a large dynamic range. It has an excellent performance from 10MHz-6 GHz with a nominal gain of 30dB. The pre-amplifier increases sensitivity of field strength measurements and is specifically designed for extremely sensitive measurements up-to 6GHz.
The Pre-amplifier has max input power (no damage) of +10 dBm.
Due to the built-in rechargeable battery, operation without power supply is possible for approx. 5h.
The pre-amplifier finds application in EMC Emission, Shielding Effectiveness, and Radio Interference measurements.
Features
1. Pre-Amplifier for Shielding effectiveness, EMC /EMI Testing2. Frequency Range: 10MHz-6 GHz
3. Impedance - 50Ω (Nominal)
4. Return Loss better than 30 dB I/O ports
5. VSWR 1.4 for input and output port
6. Connectors SMA Female
7. Max Input Power +10 dBm
Specifications
| Model | AMP-10M6G2 |
|---|---|
| Frequency Range | 10MHz - 6GHz |
| Typical Gain | >30dB |
| Noise Figure | 50MHz-6GHz (Typ:4, Max:5) |
| Impedance | < 50Ω (Nominal) |
| Connector Type | SMA Female |
| Power Supply | Using 230V-50Hz adapter with output 15V, 0.3A DC |
| Return Loss | better than 10 dB I/O ports |
| Dimensions | 120 x 95 x 58mm |
| Weight | 600g |
| Max Input Power | + 10 dBm |
| Environment | Operating -40- +85 deg Storage -55 to +100 deg |
| Applications | Radiated Emissions / Shielding Effectiveness |
