F Series Hybrid Chamber

F Series Hybrid Chamber

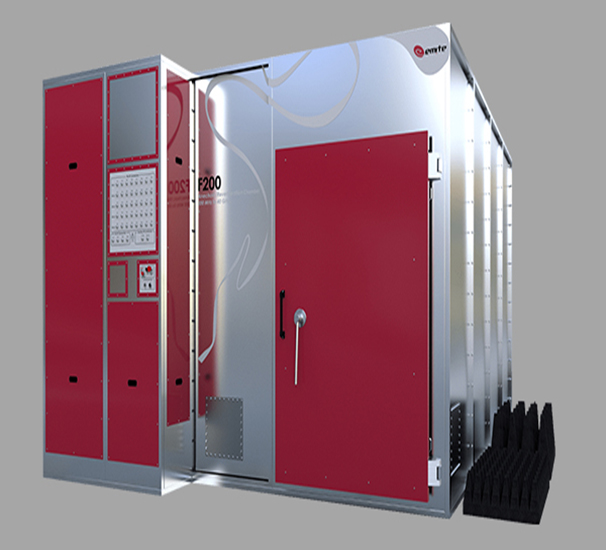

The F-Series large-size hybrid Reverberation/Anechoic Chambers (MIMO OTA, WIoT, MTC, WLAN, VDT OTA, DFF, SNF, CATR, eNb/gNB, EMC, wearables, 5G, 200 MHz to 40 GHz) represent the most versatile OTA test system in the market today. With the same unique test features of their E-Series RC and H-Series AC counterparts, the F-Series can also test large form-factor devices under test (DUTs) like laptops, large TV sets, solar and trash compactors, drones, fridges, gNodeBs or washing and vending machines, among others. With up to 16x16, 10DLCC and DUTs up to 2m and 500 kg including full-body phantoms in a turntable, the F-Series also expands the frequency range down to cover 200 MHz up to 40 GHz for 5G OTA and the test modes to include Cellular MIMO OTA, W-IoT (LoRA, Sigfox, LTE-M), Short Range (SR), Machine-Type Communications (MTC), Virtual Drive Testing over the air (VDT-OTA), 5G OTA of gNodeBs and UEs following 3GPP 38.101, 38.521, 37.842, 38.810, 38.104 and 38.141, EMC and wearable device testing. In an again unheard-of set of features. The F-Series is also reverse-convertible from Reverberation into Anechoic and vice-versa, allowing Direct Far Field (DFF), Indirect Far-Field Compact Antenna Test Range (IFF-CATR) and Near-Field to Far-Field Spherical Near Field (NFTF-SNF) 3GPP-permitted test methods for 5G OTA. Conversion from RC to AC or vice versa can be performed within half a day. The F-Series is currently in use in several carrier customers for 5G OTA testing and installations are tailored to your space and testing needs.
